| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | Standing Seam Roof Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Standing Seam Roof Roll Forming Machine | Main Power: | 7.5KW |
|---|---|---|---|
| Steel Thickness: | 0.5-0.8mm Prepainted Sheet; 0.7-1.2 Aluminium Sheet | Roll Materisl: | Prepainted/Aluminium Sheet |
| Transmission: | Roller Chains | Station: | 14 Forming Stations |
| Shaft Diameter: | 75mm | Hydraulic Motor: | 1.5kw |
| Shear Blade Material: | Cr12 | ||
| Highlight: | roof tile roll forming machine,roof panel roll forming machine |
||

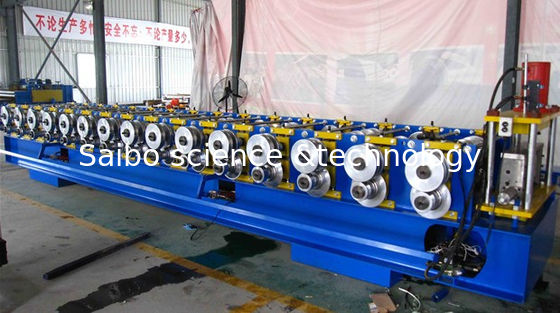

RE65-600 Straight & Tapered Standing Seam Roof Roll Forming Machine with seaming machine
1. Equipment List
| Item | QTY |
| Rollformer (Straight forming &Tapered forming) | 1Set |
| Hydraulic System | 1Set |
| Hydraulic Cutoff Device | 1Set |
| PLC Control System | 1Set |
| 5T Manual Uncoiler | 1Set |
| Supporting Rack | 3pcs |
| Gantry Lifting Frame | 1Set |
| Automatic seamer | 1 set |
| Manual seamer | 2pcs |
| 20’GP container | 1 set |
2. Technical Parameters
| Main Parameters | |||
| Motor | 7.5KW | Thickness |
0.5-0.8mm Prepainted Sheet 0.7-1.2 Aluminium Sheet |
| Transmission | Roller Chains | Raw material | Prepainted/Aluminium Sheet |
| Stations | 14 Forming Stations | Coil Width | Max.680mm |
| Dimension | 5.7m×1.3m×1.0m(L×W×H) | Coverage Width | 300/400/500/600mm |
| Weight | 7.5T | Forming Speed | 0-15m/min |
| Shaft Diameter | 75mm | Min. Coil Width | 680mm |
| Hydraulic Motor | 1.5KW | Min. Coverage Width | 300mm |
| Shear Blade Material | Cr12 | Max. Coil Width | 680mm |
| Roller Material | 45# steel with harden treatment with hard chrome film | Max. Coverage Width | 600mm |
| Electrical Control System | PLC Frequency Control | Cut To Length | Encoder 10m±3mm |
| Voltage | 380V, 50HZ, 3PH | ||
3. Profile drawing
Joint
Layout drawing:
